Highly-efficient and reliable, Haili compressor offers low-noise cooling, excellent energy savings, and wide compatibility for bus air conditioning systems.

Features of Highly pure electric compressor:

High efficiency: Compared to similar products, the COP is 10% higher

Small and lightweight: smaller volume and weight under the same specifications

Low noise: noise reduction structure design

Strong anti-interference ability: excellent resistance to electromagnetic interference and electromagnetic tolerance

Safety: IP67 waterproof, dustproof, and shockproof

Reliability: Reliability assurance through rigorous experimental assessments

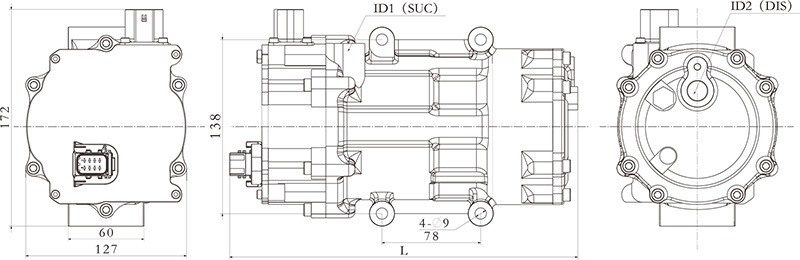

Series for Car

Model	EVS16HLBAAA	EVS24HLBBAA	EVS27HLBEAA	EVS34HLBEAA	EVS36HLBEAA
Refrigerant	R134a,1234yf
Displacement (cc/rev)	16	24	27	34	36
Power Type	DC(150-450V)orDC(350V-750V)
Speed Range (rpm)	1500-600r
Communication Protocol	CAN 2.0B or LIN
Environment Temperature(℃)	-40~80
Oil Type	HAF68(POE)
	100ml	120ml	150ml	150ml	150ml
L(mm)	253	275	280	282	282
ID1 SUC(mm)	18.3		21.3
ID2 DIS (mm)	15.5
Weight Including Oil(kg)	6.0	7.0	7.1	7.2	7.3

Test Condition

Ps=0.2 MPa[G]       Superheat=10K       Qo=(Cooling Capacity)

Pd=1.4 MPa[G]       Sub-cooling=5K      COP=(Coefficient of Performance)

Speed(rpm)    Performance		1500	2000	3000	4000	5000	6000
EVS16	Qo(W)	660	890	1350	1810	2260	2670
	COP(W/W)	1.8	1.9	2.0	2.0	2.1	2.1
EVS24	Qo(W)	990	1330	2020	2710	3380	4010
	COP(W/W)	1.9	2.0	2.1	2.2	2.2	2.2
EVS27	Qo(W)	1110	1500	2270	3050	3800	4510
	COP(W/W)	1.9	2.0	2.1	2.2	2.2	2.2
EVS34	Qo(W)	1460	1950	2930	3910	4870	5820
	COP(W/W)	2.1	2.1	2.2	2.2	2.3	2.2
EVS36	Qo(W)	1550	2070	3110	4140	5160	6170
	COP(W/W)	2.1	2.1	2.2	2.2	2.3	2.3

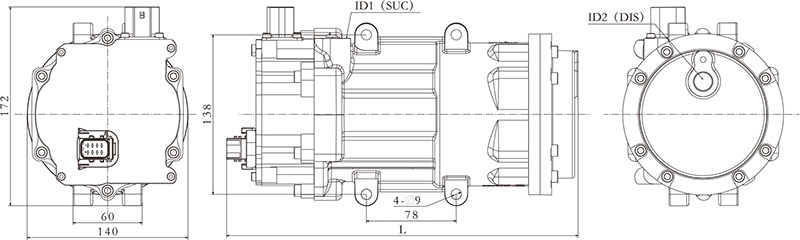

Series for Van

Model	EVS42HLBCAA	EVS50HLBCAA
Refrigerant	R134a,1234yf
Displacement (cc/rev)	42	50
Power Type	DC(150-450V)or DC(350V-750V)
Speed Range (rpm)	2000-6000
Communication Protocol	CAN 2.0B or LIN
Environment Temperature(℃)	-40～80
Oil Type	HAF68(POE)
	220ml
L(mm)	302	305
ID1 SUC(mm)	21.3
ID2 DIS (mm)	15.5
Weight Including Oil (kg)	8.9	9.0

Test Condition

Ps=0.2 MPa[G]   Superheat=10K   Qo=(Cooling Capacity)

Pd=1.4 MPa[G]   Sub-cooling=5K   COP=(Coefficient of Performance)

Speed(rpm) /Performance		2000	3000	4000	5000	6000
EVS42	Qo(W)	2410	3620	4820	6110	7190
	COP(W/W)	2.2	2.3	2.3	2.3	2.3
EVS50	Qo(W)	2870	4310	5740	7160	8560
	COP(W/W)	2.2	2.3	2.4	2.4	2.4

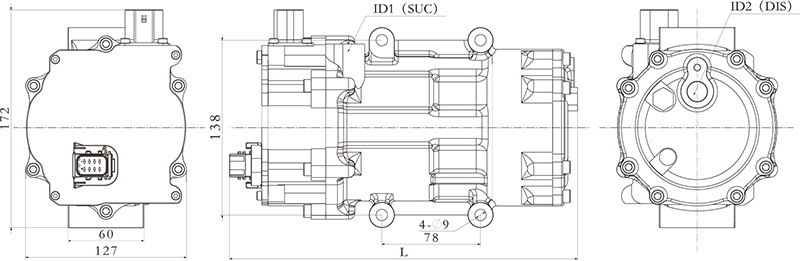

Series l for Bus

Model	EVS27HICFA4	EVS34HLCCAA	EVS36HLCCAA	EVS42HLCCAA
Refrigerant	R407C
Displacement (cc/rev)	27	34	36	42
Power Type	DC(150-450V)or DC(350V-750V)
Speed Range (rpm)	2000-6000
Communication Protocol	CAN 2.0B or LIN
Environment Temperature(℃)	-40～80
Oil Type	HAF68(POE)
	150ml	150ml	150ml	150ml
L(mm)	280	282	282	303
ID1 SUC(mm)	21.3
ID2 DIS (mm)	15.5
Weight Including Oil (kg)	7.2	7.6	7.6	8.9

Test Condition

Ps=0.55 MPa[G]    Pd=2.23 MPa[G]

Superheat=10K   Sub-cooling=5K

Qo=(Cooling Capacity)

COP=(Coefficient of Performance)

Speed(rpm) /Performance		2000	3000	4000	5000	6000
EVS27	Qo(W)	3110	4680	6240	7780	9300
	COP(W/W)	2.7	2.8	2.8	2.9	2.8
EVS34	Qo(W)	3920	5890	7860	9800	11710
	COP(W/W)	2.8	2.9	2.9	2.9	2.9
EVS36	Qo(W)	4150	6240	8320	10380	12400
	COP(W/W)	2.8	2.9	2.9	3.0	2.9
EVS42	Qo(W)	4840	7280	9710	12110	14460
	COP(W/W)	2.8	2.9	3.0	3.0	3.0

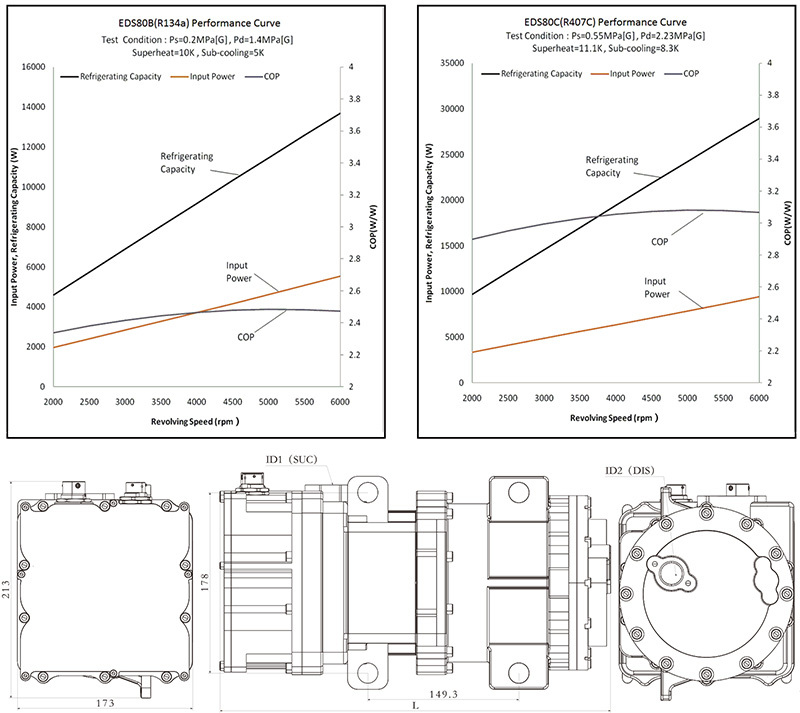

Series 2 for Bus

Model	EDS80HLBHEA	EDS80HLCHEA
Refrigerant	R134a,1234yf	R407C
Displacement(cc/rev)	80
Power Type	DC(400V-750V)
Speed Range (rpm)	2000-6000
Communication Protocol	CAN 2.0B or LIN
Environment Temperature(℃)	40～80
Oil Type	HAF68(POE)
	700ml
L(mm)	386
ID1 SUC(mm)	28.2
ID2 DIS (mm)	21.3
Weight Including Oil (kg)	20

Series for Refrigerated Truck

Model	EVR22HLLBEE	EVR27HLLEEE	EVR34HLLEEE
Refrigerant	R404A
Displacement (cc/rev)	22	27	34
PowerType	DC(150-450V)or DC(350V-750V)
Speed Range (rpm)	2000-6000
Communication Protocol	CAN 2.0B or LIN
Ambient Temperature(℃)	-40~80
Oil Type	HAF68(POE)
	120m	150ml	150ml
L(mm)	231	278	280
ID1 SUC(mm)	18.3	21.3
ID2 DIS(mm)	15.5
Weight Including Oil(kg)	7.0	7.2	7.6

Refrlgeration Test Condition

Ps=0.2 MPa[G

Pd=1.8 MPa[G]

Superheat=11K

Sub-cooling=8.3K

Qo=(Cooling Capacity)

COP=(Coefficient of Performance)

Speed(rpm) /Performance		2000	3000	4000	5000	6000
EVR22	Qo(W)	910	1530	2040	2550	3060
	COP(W/W)	0.9	1.2	1.2	1.3	1.4
EVR27	Qo(W)	1130	L890	2520	3150	3780
	COP(W/W)	1.0	1.2	1.3	1.4	1.4
EVR34	Qo(W)	1340	2250	2960	3760	4500
	COP(W/W)	1.1	1.2	1.3	1.3	1.3

Refrlgeration Test Condition

Ps=0.1 MPa[G

Pd=1.6 MPa[G]

Superheat=11K

Sub-cooling=8.3K

Qo=(Cooling Capacity)

COP=(Coefficient of Performance)

Speed(rpm) /Performance		2000	3000	4000	5000	6000
EVR22	Qo(W)	540	820	1160	1490	1850
	COP(V N/W)	0.8	0.8	0.9	0.9	1.0
EVR27	Qo(W	670	L010	440	L840	2290
	COP(W/W)	0.8	0.8	0.9	1.0	1.0
EVR34	Qo(W)	800	L200	710	2190	2720
	COP(W/W)	0.8	0.8	0.9	0.9	1.0

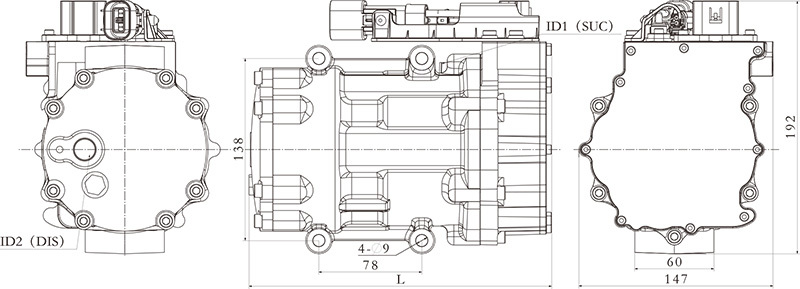

Series for L

Model	ELS24HLBFCG	ELS24HLBSCG	ELS32HLBSCG
Refrigerant	R134a,1234yf
Displacement (c/rev)	24	24	32
Power Type	DC(70-200V)	DC(150-450V)or DC(350V-750V)
Speed Range (rpm)	1500-5000	1500-6000
Communication Protocol	CAN 2.0B or LIN
EnvironmentTemperature(℃)	-40～80
Oil Type	HAF68(POE)
	120ml		150ml
L(mm)	231		229
ID1 SUC(mm)	18.3		21.3
ID2 DIS(mm)	15.5
Weight Including Oil (kg)	6.5		6.6

Test Condition

Ps=0.2 MPa[G]

Pd=1.4 MPa[G]

Superheat=10K

Sub-cooling=5K

Qo=(Cooling Capacity)

COP=(Coefficient of Performance)

Speed(rpm) /Performance		1500	2000	3000	4000	5000	6000
ELS24	Qo(W)	990	1330	2030	2710	3380	4010
	COP(W/W)	1.9	2.0	2.1	2.1	2.2	2.2
ELS32	Qo(W)	1380	1840	2760	3680	4590	5480
	cOP(W/W	2.1	2.1	2.2	2.2	2.2	2.2

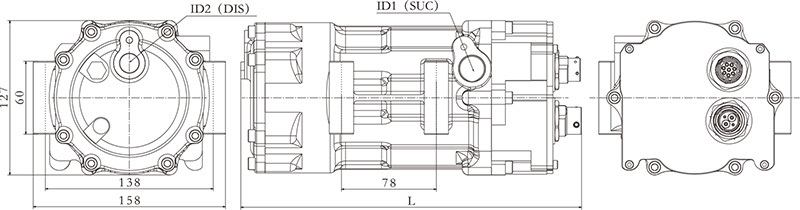

Series for T

Model	ETS34HLBEAA
Refrigerant	R134a,1234yf
Displacement (cc/rev)	34
Power Type	DC(150-450V)
Speed Range (rpm)	1000-8000
Communication Protocol	CAN 2.0B or LIN
Environment Temperature (℃)	-40～80
Oil Type	HAF68(POE)
	150ml
Overall Dimension (mm)	210*154*188
Weight (kg)	5.9

Refigeration

TestCondition

Ps=0.196 MPa[G

Pd=1.47 MPa[G]

Superheat=20K

Sub-coling=5K

Qo=(Cooling Capacity)

COP=(Coefficient of Performance)

Speed(rpm) /Performance		1000	2000	3000	4000	5000	6000	7000	8000
ET534	Qo(W)	600	1340	2520	3640	4720	5750	6790	7780
	COP(W/W)	1.0	1.4	1.9	2.1	2.2	2.2	2.2	2.2
